Door Rosette vs Escutcheon: Check the Lock First

In the door rosette vs escutcheon choice, a rosette, or rose, is a small round or square plate behind a single knob or lever, and an escutcheon is a plate that surrounds a spindle or keyhole opening. The word covers a small rose, a keyhole plate and a long plate that carries the knob and a keyhole, turn or cylinder in one piece. Neither plate type belongs to one kind of lock: bored (tubular) locksets can take compatible sideplates, and mortise locks can take compatible roses with a separate cylinder or turn trim. Start by identifying the lock inside the door, because that decides which trim is compatible. After that, choosing between roses and plates is a matter of the look you want and what you need to cover on the door face.

The names overlap, so shop by the openings and the specs

Escutcheon is the older and broader word. It first meant a plate around a keyhole, and it still means that on many doors, where a small keyhole escutcheon sits on its own below a knob. In American door hardware it also covers the long backplate, and some makers sell their round roses as round escutcheons alongside long plates, while others call the same shape a rosette. So the name on the listing tells you less than the product specifications and drawing.

Counting openings does not reliably identify the lock either. A backplate can have one opening or several, and a plate with a single opening can be a backplate for a latch. What matters is that every opening lines up with something that exists in the door, and that the plate suits the mechanism behind it.

Bored latch or mortise lock: what the door edge can tell you

A bored latch shows a small faceplate on the door's edge around a single latch bolt. On the face of the door, the knob covers a round hole, commonly 2-1/8 in across, drilled straight through. Everything the lock does happens at the knob: a privacy set locks with a button or small turn in the knob or the trim. Most bored sets are finished with a rose, and a compatible sideplate can work as well when the maker offers one for that set.

A mortise lock shows a tall rectangular faceplate on the edge, often with a second bolt besides the latch. The lock body sits in a deep pocket cut into the door, and it is worked through the face at two points: a spindle for the knob, and a second point, usually below it, for a key, a cylinder or a privacy turn. A long plate covers both with one piece and holds them in a fixed relationship. Roses can work on a mortise lock too, a rose for the knob and a separate small escutcheon or turn for the key, and that layout is common on European doors. It means two pieces to place and align instead of one.

The size of the faceplate on the edge is a useful clue, not a definitive test. Some mortise-style hardware has a modest faceplate, and some bored sets have unusual ones. When you are uncertain, find the manufacturer and model stamped on the faceplate or the lock case, or take the trim off and inspect the mechanism before you order anything.

What a trim has to match behind the door

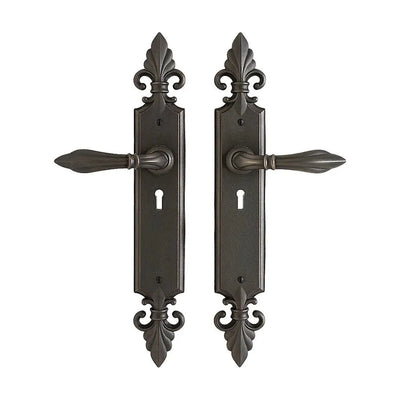

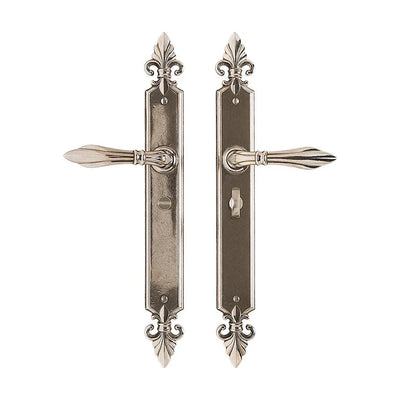

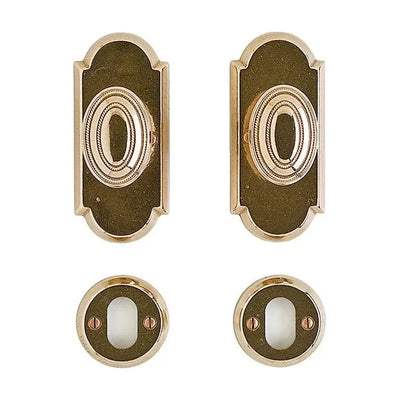

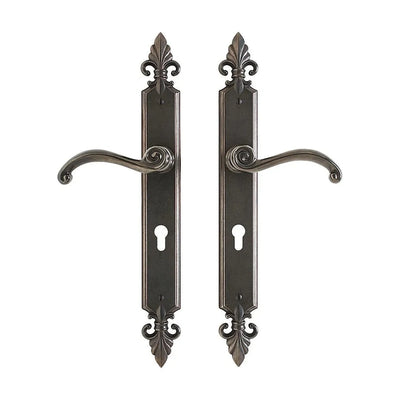

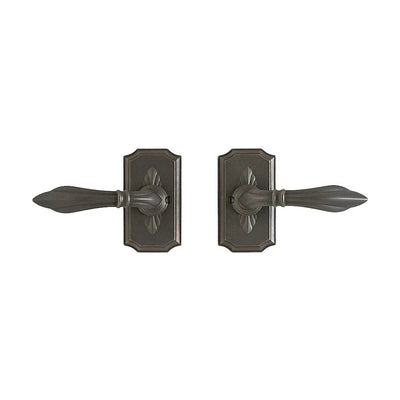

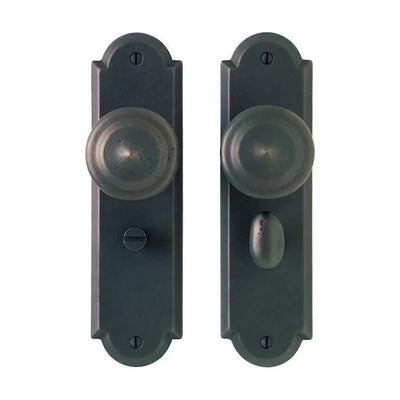

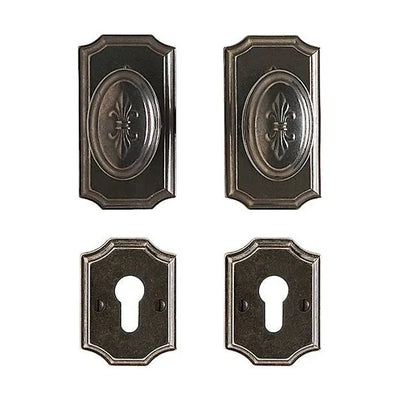

Long plates are sold by function, and the function must match the lock behind them: latch trim with no second opening, privacy turn, bit key (the old skeleton key style), oval cylinder, euro profile cylinder and so on. A bit-key plate on a door with a cylinder mortise lock will not line up, and neither will a cylinder plate on an old bit-key lock. Dimensions and hole spacing are only part of the check. Before buying trim for an existing lock, confirm:

The lock model and its function (passage, privacy, entry, dummy).
The spindle or hub arrangement, and whether the knob or lever shares a spindle with other parts.
The cylinder or turn configuration: its type and its position relative to the spindle.
The mounting pattern, meaning where the screws or posts that hold the trim go.
The door thickness, including any limits on what the trim and spindle can handle.
That the trim is approved by the lock's manufacturer for that lock.

Covering old holes with a trim does not establish that it will work mechanically. A plate that hides the outline can still have an opening in the wrong place for the cylinder or turn.

If you are keeping an existing mortise lock, measure the old plate too: the distance from the center of the spindle hole to the center of the keyhole or turn, and the plate's height and width. The plates in our escutcheons collection run from about 3-1/4 in to 17 in tall (83 to 431 mm), in widths from about 1-3/4 to 3-1/2 in (44 to 89 mm), so check the specifications on each listing against your measurements.

Covering old holes when you change hardware

Three retrofit situations come up, and each one points a different way.

New knob on a bored door. The new rose has to be wider than the bore beneath it and wider than any paint outline the old rose left. Rose diameters vary by maker and by model, so compare the specified diameter of the exact product with your measurement of the old rose and the bare outline around it. A rose that barely clears the bore leaves no margin for a ring of old paint.
Switching a mortise lock's trim from long plates to roses. Taking a backplate off exposes the keyhole or turn opening, its screw holes, and usually a rectangle of paint or finish that aged differently from the rest of the door. Filling and repainting can hide that on a painted door; on stained or clear-finished wood it may stay visible, and a plate may be the easier way to cover it. Changing to compatible trim while keeping the mortise lock does not by itself mean filling the lock pocket or doing work on the door edge, but the roses, turn and cylinder trim must be approved for that lock.
Converting the lock mechanism. Replacing an old mortise lock with a bored latch is a change to the door preparation. A new long plate can cover the old face openings, but no plate covers the door's edge, and the empty lock pocket has to be filled, usually with a glued-in block of wood, before a bored latch can be drilled through it. That is carpentry, not a trim swap, and worth pricing before you choose the new hardware.

Check the stile, a preliminary test

On a paneled door, the hardware sits on the stile, the vertical part of the frame between the door's edge and the molding around the panel. A rose or plate has to sit flat on that stile without riding up onto the molding. For trim centered on the spindle, a preliminary check is simple arithmetic. Take the backset, the distance from the door's edge to the center of the knob (2-3/8 in and 2-3/4 in are the two common sizes), and add half the width of the plate or rose. That total has to be less than the distance from the door's edge to the start of the panel molding. A 2-3/8 in backset with a plate 2-1/2 in wide needs at least 3-5/8 in of flat stile.

That arithmetic does not apply to offset or asymmetric plates, where the spindle sits off the center line. For those, use the manufacturer's dimensional drawing, and check the mounting holes and the clearance around any molding before you buy. Height works the same way: a tall plate has to fit the flat run of stile above and below the knob, which is worth checking on glass doors and doors with a low panel.

Roses or plates: a choice of look, once the lock is settled

Once you know which trim is compatible with the lock, the choice between roses and long plates is about the look you want. A rose shows more door and less metal, which suits flat slab doors, simple panel doors and levers with a clean line. A long plate adds length and detail and covers more of the door face, which some people prefer on tall paneled doors. Neither is limited to older or newer doors. Plates and roses both appear on traditional and modern doors alike.

Keeping one trim type throughout a hallway is optional. Some people like the consistency along one sightline; others mix plates and roses where the lock types differ, and it can look intentional either way. Choose what works for each door.

Choosing in the order the door dictates

Identify the lock: look at the edge of the door, then confirm with the manufacturer and model or by inspecting the mechanism.
Look at the face for anything the new hardware has to hide: keyholes, screw holes, paint outlines.
Measure the old rose or plate, and on a mortise lock, the spindle-to-keyhole distance.
Check compatibility beyond size: function, spindle or hub, cylinder or turn, mounting pattern, door thickness and manufacturer-approved trim.
Check the stile for centered trim, or the dimensional drawing for offset trim.
Then pick the style, and choose the knob or lever from interior door sets or individual door knobs that go with the rose or plate you settled on.
