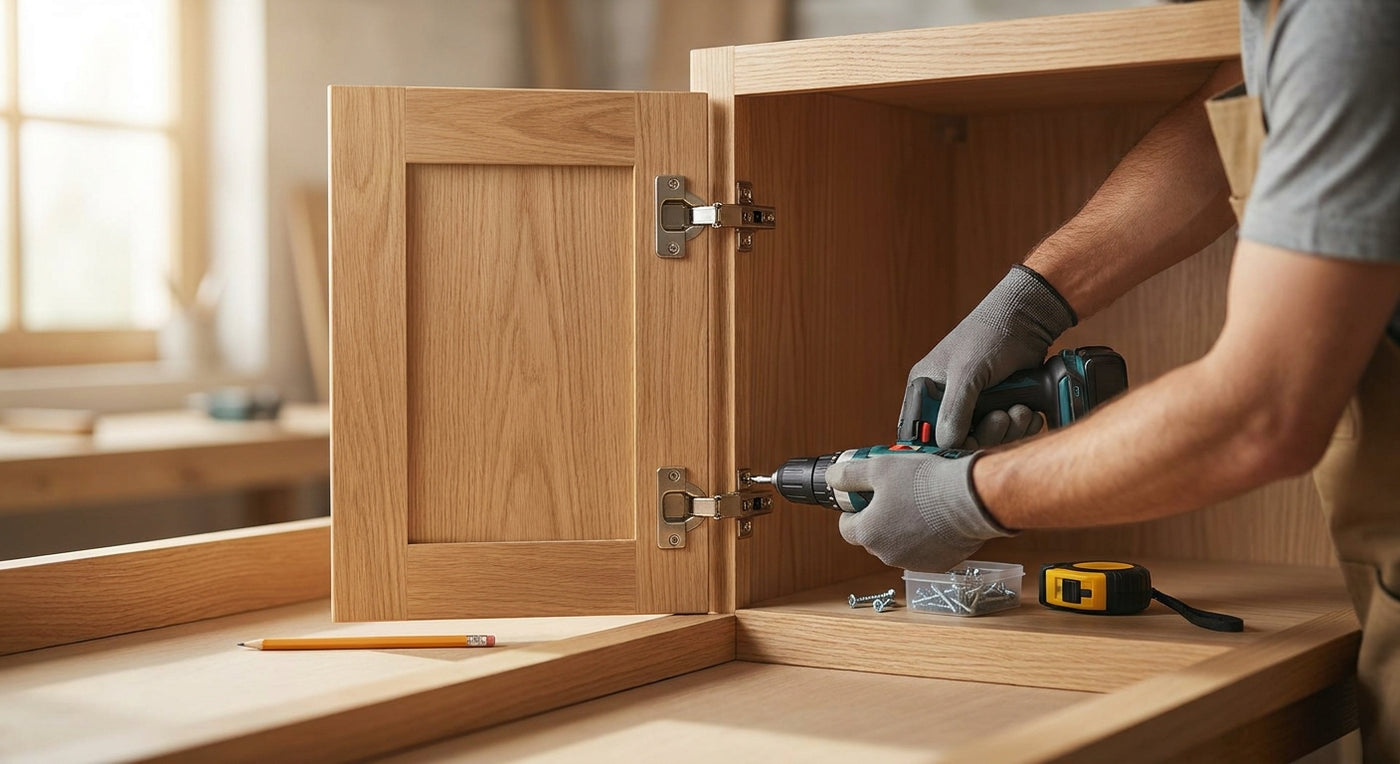

How to Install Cabinet Hinges on Face-Frame Cabinets 2026

Installing cabinet hinges on face-frame cabinets is a straightforward job in 2026 — but getting the door to sit flush and swing freely requires the right hinge type, accurate layout, and a clean mortise (if your hinge requires one). This guide covers everything from selecting the correct hinge to adjusting the door after mounting.

TL;DR: To install cabinet hinges on face-frame cabinets in 2026, you need the right hinge style (inset, half-overlay, or full-overlay), a consistent reveal layout, and properly sized pilot holes. Mark both the door and frame at the same time to keep pairs aligned. Use a self-centering bit for screw holes and adjust cup hinges after mounting if the door doesn't sit square. Knobs.co stocks hinges and hardware from 50,000+ SKUs — order free samples before committing to a full set.

Why Face-Frame Installations Differ

Face-frame cabinets have a solid wood frame attached to the front of the cabinet box. The hinge mounts to that frame, not directly to the side panel. That extra frame thickness changes how much door overlay you get and which hinge types work at all. Getting this wrong means a door that binds, gaps unevenly, or won't close without a hard push.

Three overlay styles apply here:

Inset: Door sits flush inside the frame opening — the hardest to install, requires tight tolerances of 1/16" to 1/8" reveal on all sides.
Half-overlay: Door covers half the face frame on the hinge side, typically 3/8". Standard on most production cabinets built before 2010.
Full overlay: Door covers the entire face frame opening. Common in 2026 frameless-look remodels on face-frame boxes.

What You'll Need

Face-frame hinges matched to your overlay style
Tape measure and combination square
Marking awl or sharp pencil
Power drill with a self-centering (Vix) bit
Chisel and mallet (for surface-mounted hinges requiring a mortise)
#2 Phillips bit
Screws sized to the hinge (typically #8 x 3/4" for the door, #8 x 1" for the frame)
Level
Painter's tape (for marking)

Time: 20–45 minutes per door pair, depending on hinge type and whether mortising is needed.

The Steps

Step 1 — Choose the Right Hinge for Your Overlay

Measure the existing door overlay or the planned reveal before ordering anything. For inset doors, use a knife-style or inset cup hinge with a full 0mm crank. For half-overlay, use a hinge with 9–11mm cup depth and a half-crank arm. For full overlay, use a 0mm or straight-arm cup hinge with a 35mm cup bore.

Surface-mount butt hinges work on any overlay but require a mortise on both the door edge and frame face for a flush fit. Skipping the mortise causes the door to sit proud of the frame by 1/8" to 3/16" — visible from across the room.

Common mistake: Ordering a full-overlay European cup hinge for a half-overlay application. The door will close 3/8" short of the frame and bind on the adjacent door.

Step 2 — Mark Hinge Locations on the Door

Stand the door vertically. Place the top hinge 2–3" from the top edge and the bottom hinge 2–3" from the bottom edge. On doors taller than 60", add a third hinge centered between the first two.

Mark the hinge centerline with a pencil, then transfer the exact hinge leaf outline using the hinge itself as a template. Score the outline lightly with a marking awl — this gives the chisel a clean stop line in Step 4.

Expected outcome: Two (or three) hinge locations marked on the door with leaf outlines scribed in.

Step 3 — Transfer Marks to the Face Frame

Hold the door in its open position against the cabinet. Align the door to the opening with the correct reveal (use shims to hold it at the target gap — 1/8" on all sides for inset, zero gap for overlay). Clamp or tape the door in place.

Transfer the hinge-leaf centerlines directly from the door marks onto the face frame with a square. Mark both the top and bottom of each hinge leaf location on the frame.

Why it matters: Marking both parts while the door is physically in position eliminates the most common mistake — a door that's 1/4" high or low relative to the opening.

Step 4 — Mortise the Hinge Locations (Surface-Mount Butt Hinges Only)

For European cup hinges, skip to Step 5. For butt hinges, use a sharp chisel to cut the mortise to the depth of one hinge leaf (typically 3/32").

Chisel across the grain first to sever the wood fibers, then pare with the grain to clean the floor of the mortise. Check depth with the hinge leaf itself — the leaf should sit perfectly flush with the wood surface, neither proud nor recessed.

Common mistake: Cutting the mortise too deep. A recessed hinge causes the door to pull toward the frame when closing, creating a tight spot at the latch side.

Step 5 — Drill Pilot Holes

Set the hinge in position. Use a self-centering (Vix) bit to drill pilot holes through each hinge screw hole. A Vix bit automatically centers in the countersunk hole of the hinge leaf, keeping every screw perfectly on axis.

Drill depth should be 1/8" shorter than screw length to let the screw bite without blowing through thin frame stock. On a 3/4" face frame with a 1" screw, drill 7/8" deep.

Expected outcome: Clean pilot holes centered in every hinge leaf screw hole, no splitting.

Step 6 — Mount the Hinges to the Door

Attach all hinge leaves to the door first, before hanging. Drive screws snug but not overtightened — the wood can strip in thin door-edge stock if you torque past hand-tight. For cup hinges, clip the arm onto the cup mounted in the 35mm bore hole, then snap or screw the baseplate to set position.

Step 7 — Hang the Door

Hold the door against the face frame, aligning the frame-side hinge leaves to the pilot holes you drilled in Step 5. Drive one screw per hinge leaf into the frame — just enough to hold the door while you check the reveal.

Open and close the door twice. Look at the gap on all four sides. Adjust before driving the remaining screws.

Common mistake: Fully tightening all screws before checking the door swing. Once all screws are seated, fixing a misaligned door requires removing everything and re-drilling.

Step 8 — Adjust and Final-Tighten

For European cup hinges, use the three built-in adjustments: side-to-side (move door left/right), up-and-down (loosen the baseplate screws and slide), and in-and-out (front-to-back depth of the arm). Most quality hinges in 2026 provide ±2mm adjustment on each axis without re-drilling.

For butt hinges, shim behind the frame-side leaf with a thin card if the door swings open on its own (hinge is proud) or pulls closed (hinge is too deep).

Troubleshooting

Door rubs the frame on the hinge side. The hinge is mounted too far into the frame. Loosen the frame-side screws and move the leaf 1/16" away from the opening, or add a 1/32" card shim behind the leaf.

Door won't stay closed — springs open. The mortise is too shallow on the frame side, causing the door to bind and rebound. Deepen the mortise by 1/32" increments until the door swings freely and stays put.

Top of the door is tight, bottom has a gap. The top hinge is set deeper than the bottom hinge. Shim behind the top hinge frame leaf or deepen the bottom mortise to match.

Cup hinge arm won't snap into the cup. The 35mm bore hole is too shallow or slightly off-center. Re-bore 1–2mm deeper with a 35mm Forstner bit. Off-center bores can't be fixed — fill with wood glue and a dowel plug, let cure 24 hours, then re-bore.

Door is 1/4" too high in the opening. The marks on the door and frame weren't transferred simultaneously (Step 3 was skipped). Remove the door, re-mark using the door physically held in position, and plug and re-drill the old pilot holes.

Screws spin without gripping. The pilot hole is stripped. Remove the screw, fill the hole with a toothpick and wood glue, let cure overnight, then re-drive.

Tools and Resources

35mm Forstner bit (for European cup hinges)
Self-centering Vix bit set (3 sizes covers nearly all hinge hardware)
Combination square with 12" blade
Sharp bench chisels (3/4" and 1" widths)
Painter's tape for layout marks that don't damage the finish
How to measure cabinet pull hole spacing — use this once doors are hung to pick the right knob or pull center-to-center before drilling

Knobs.co carries knobs, pulls, and finishing hardware to complete the install. If you're upgrading hinges as part of a full hardware refresh, order free samples to check finish and weight before buying in quantity — the 110% price match guarantee means you don't need to shop around.

What to Do Next

Once your doors hang square and swing cleanly, install your knobs and pulls. Consistent drilling across all doors is the step most people rush — read how to choose the right cabinet knob size before picking up the drill.

FAQ

What type of hinge do I need for face-frame cabinets? It depends on your overlay. Inset doors need an inset or knife hinge. Half-overlay uses a half-crank European cup hinge. Full overlay uses a straight-arm cup hinge with a 35mm bore. Measure your existing door position or your target reveal before ordering in 2026 — the wrong hinge type won't fit without major modification.

How far from the top and bottom should cabinet hinges be placed? Place the top hinge 2–3" from the top edge and the bottom hinge 2–3" from the bottom edge. For doors over 60" tall, add a third hinge at center. Placing hinges closer than 2" to the edge risks splitting the door stile.

Do I need to mortise hinges on face-frame cabinets? Only for butt-style surface-mount hinges. European cup hinges mount to a 35mm bore hole in the door and a flat baseplate on the frame — no mortise required. Most new installs in 2026 use cup hinges for this reason.

How many hinges per cabinet door? Two hinges for doors up to 60" tall and under 20 lbs. Three hinges for doors between 60–80" or over 20 lbs. Four hinges for full-height pantry doors.

Can I use European cup hinges on inset face-frame cabinets? Yes — use a 0mm (straight) arm cup hinge with a full-inset clip or baseplate designed for face-frame mounting. Standard frameless-style baseplates won't position correctly on the thicker face frame; you need a dedicated face-frame adapter plate.

How do I adjust a cabinet door that's crooked after installation? For cup hinges, use the side and height adjusters built into the baseplate — no removal needed. For butt hinges, loosen the frame-side screws and shim behind the leaf to correct the lean. Never try to bend the hinge arm; it weakens the metal and shifts alignment unpredictably.

What screw size should I use for cabinet hinges? Most face-frame hinges use #8 x 3/4" screws into the door and #8 x 1" screws into the face frame. Check the hinge manufacturer's spec — some 2026 hinges ship with their own screws sized specifically for the leaf countersink.

Is it better to install knobs or pulls before or after hinges? Always hang the door and verify the swing before drilling for hardware. A door that's 1/8" off-position changes where your pull centerline lands relative to the stile. Hinge first, hardware second.

One Last Thing

The single most overlooked step in face-frame hinge installation is transferring marks with the door physically held in position (Step 3 above). Professionals who do this correctly in 2026 still mark both components simultaneously — it's not a shortcut, it's the only reliable method. Marking the frame independently with a tape measure introduces cumulative error across multiple doors that becomes obvious once all 12 cabinet doors are hung side by side.
