Cabinet Hardware Jig Placement Guide (2026)

A cabinet hardware jig removes all the guesswork from drill placement — one tool, one setup, perfect holes every time across an entire kitchen or bath.

TL;DR: Cabinet hardware jig placement in 2026 means setting your jig for the correct center-to-center spacing, clamping it flush to the corner or edge of the door, drilling through both guide holes at once, then moving to the next door. Get the spacing and the reference edge right before you drill the first hole and every piece of hardware lines up. Miss either and you'll be filling holes.

Why This Matters

Cabinet hardware is one of the cheapest-per-impact upgrades in a kitchen or bathroom remodel — but only when the placement is consistent. A 1/16-inch drift repeated across 30 cabinet doors reads as sloppy craftsmanship at a glance. A jig costs $10–$30 and eliminates that drift entirely. In 2026, with knobs and pulls available in hundreds of sizes across finish families from matte black to champagne bronze, you'll often be switching between knob hardware (one hole) and pull hardware (two holes at a specific center-to-center), sometimes on the same job. A dual-function jig handles both.

What You'll Need

Cabinet hardware jig (adjustable preferred — covers 3", 3-3/4", 5", 7-9/16" center-to-center)
Drill with a sharp 3/16" bit (standard for most cabinet hardware screws)
Tape measure or combination square
Pencil
Painter's tape (optional, prevents tear-out on painted doors)
Hardware screws (typically 8-32 thread, included with knobs or pulls)
Level (optional, for verifying door hanging before you drill)

The hardware itself determines the drill spacing. If you're installing the Alcott pull 5-1, the center-to-center is 5 inches — set your jig to that spacing before you touch wood.

The Steps

Step 1: Identify your hardware's center-to-center measurement

Pulls require two holes spaced at a fixed distance — the center-to-center (cc) spec. This is printed on the product listing and typically stamped into the jig. A pull listed as "5-1" has a 5" center-to-center. A knob needs only one hole. Confirm this before adjusting anything. Getting the spacing wrong means drilling again.

Common cc measurements: 3", 3-3/4", 5", 6-5/16", 7-9/16", 8-13/16"

Common mistake: Measuring the overall length of the pull instead of the center-to-center distance. Those numbers are different and using the wrong one guarantees misalignment.

Step 2: Set the jig to the correct spacing

Adjust the jig's sliding guide holes to match your center-to-center. Most quality jigs click into pre-set positions. Line up the indicator mark with your cc number, then test the spacing against a ruler — the distance between the two guide hole centers should match exactly. Do this before you move to any door.

For knobs, set the jig to the single-hole position. In 2026, single-hole knobs remain the most popular choice on upper cabinet doors; pulls dominate lower drawers and base cabinet doors.

Common mistake: Setting the jig for one spacing and then installing half the hardware before switching to a different pull size — without resetting. Always verify the jig setting when you change hardware styles.

Step 3: Choose your placement position and mark the reference corner

The jig registers from a door corner. Typical placement in 2026:

Knob on an upper door: 2-1/2" to 3" from the bottom corner of the stile (opposite side from hinges)
Pull on a lower base door: 2-1/2" to 3" from the top corner, vertical orientation
Pull on a drawer front: centered horizontally, vertically centered on the drawer height (use the jig's horizontal channel)

Decide on a consistent reference measurement for every door of the same type before drilling the first one. Write it down. Change it and you will see the difference.

Common mistake: Using the top corner on upper doors and the bottom corner on lower doors without accounting for the reversal — the knob or pull ends up in different visual positions relative to the door center.

Step 4: Clamp the jig to the door and drill

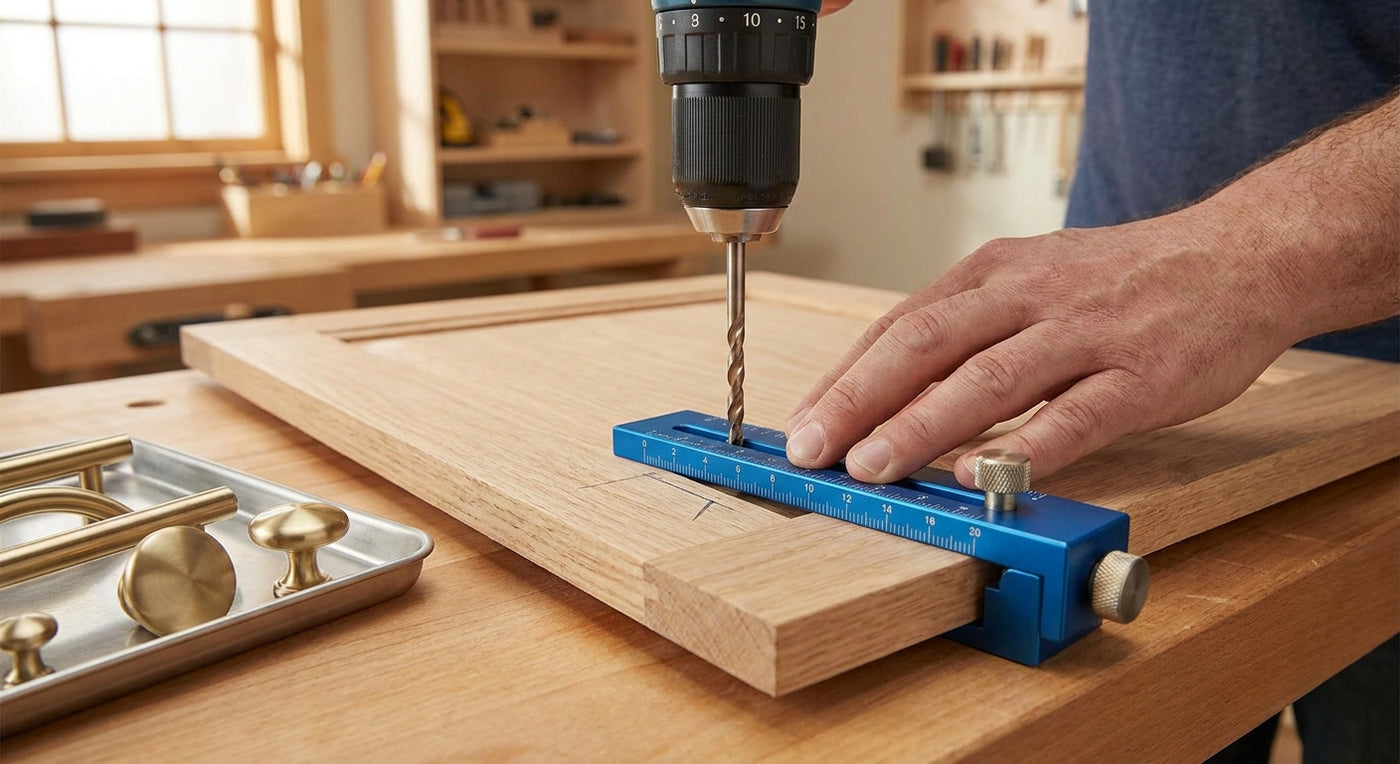

Hold or clamp the jig flush against the door corner with the reference edge tight to the stile and the bottom edge at your chosen measurement. Apply painter's tape over the drill area if the door is painted or veneered — it significantly reduces tear-out on exit.

Drill straight through at 90 degrees. Apply steady pressure without forcing. Exit the bit slowly to avoid blowing out the back face. If the door is already hung, support the opposite side with your free hand or a piece of scrap wood.

Expected outcome: Two clean holes at the exact center-to-center of your pull, or one clean hole for a knob, at a consistent corner distance across every door.

Common mistake: Letting the jig shift during drilling. If you're not using a clamp, press the jig firmly with your non-drill hand and feel for any movement before the bit engages.

Step 5: Test-fit before continuing

After drilling the first door, thread the screw through from the inside and hand-tighten the pull or knob. Check that it sits plumb and at the right visual height before drilling the next 29 doors. This is the fastest catch point — fixing one door takes 30 seconds; filling and redrilling 10 doors takes an afternoon.

Expected outcome: Hardware sits flat against the door face, screw engages cleanly, nothing wobbles.

Step 6: Repeat systematically across all doors and drawers

Work door-by-door in one direction — left to right or top to bottom — so you don't skip a surface. Drawer fronts need a separate setup: the jig's horizontal channel centers the pull between the drawer's left and right edges. Measure the drawer width, divide by 2, set that on the jig's horizontal scale.

For a 30-door kitchen in 2026, a consistent workflow takes about 90 minutes with a drill and jig. Without a jig, expect to spend 3–4 hours and still find inconsistencies.

Step 7: Install the hardware and check torque

Thread screws from inside the cabinet or drawer box through to the hardware. Hand-tighten first, then snug with a screwdriver — not a drill. Over-torquing strips the 8-32 thread, especially in MDF cabinet doors. The hardware should sit flat with no rotation or wobble.

Common mistake: Using a drill driver on final tightening. The torque is too high for soft materials. Use a hand screwdriver for the last half-turn.

Troubleshooting

Hardware is crooked even though the holes look right. The jig shifted during drilling. The two holes are still at the correct spacing but the axis drifted. Fill with wood filler, let cure 24 hours, sand, repaint, redrill.

Screw won't reach the hardware. You drilled through a double-thick door or a raised panel. Use a longer 8-32 machine screw (available in 1", 1-1/4", 1-1/2" lengths). Measure the door thickness before ordering hardware.

Pull spins after tightening. The screw hole in the pull is slightly oversized. Add a small washer between the screw head and the interior door face to increase clamping force.

Knob placement looks too low on upper doors. The industry convention changed — in 2026 most designers place knobs 2-1/2" from the bottom rail, not the side stile. If the knob reads as visually low, re-reference from the corner closest to the door's operating edge at the 3" mark.

Tear-out on painted doors. You skipped painter's tape. Sand the tear-out smooth with 220-grit, touch up with matching paint, reapply tape on the next door.

Jig doesn't have my pull's center-to-center. Most adjustable jigs cover common increments. If your spacing falls between marks, clamp the jig at the nearest setting, mark the second hole with a pencil through the guide, then reposition the jig for the off-increment hole. Double-check with calipers.

Tools and Resources

Adjustable cabinet hardware jig (most hardware stores, $15–$30 in 2026)
3/16" twist drill bit (replace every 50–75 holes — dull bits tear out)
8-32 machine screws in 1" and 1-1/4" lengths
Wood filler (for corrections)
Alcott pull 5-1 — example of a standard 5" cc pull compatible with common jig settings
Austen oval pull 5-1 — another 5" cc option if you prefer an oval profile
How to choose the right cabinet knob size — covers size-to-door-proportion rules before you drill

What to Do Next

Once placement is dialed in, the next decision is hardware selection by finish. If you're working on a shaker-door kitchen in 2026, how to choose cabinet hardware for shaker cabinets covers the proportion and finish rules that prevent the most common mismatch errors.

FAQ

What is a cabinet hardware jig used for? A cabinet hardware jig is a drilling template that positions holes for knobs and pulls at a consistent location on every door and drawer. It eliminates the need to measure and mark each door individually and keeps placement identical across an entire kitchen or bathroom.

What is the standard center-to-center for cabinet pulls in 2026? The most common sizes are 3", 5", and 7-9/16" center-to-center. Three inches is standard for small drawers; 5" fits most base cabinet doors; 7-9/16" is common on large drawers and appliance pulls. Always verify the cc spec on the product listing before setting your jig.

How far from the edge should cabinet hardware be placed? The conventional placement is 2-1/2" to 3" from the edge of the door stile. Upper doors typically reference from the bottom corner; lower doors from the top corner. Drawers center the pull horizontally and position it in the upper third of the drawer face.

Can I use a jig for both knobs and pulls? Yes. Any adjustable dual-function jig handles both. Set it to the single-hole channel for knobs and to the appropriate center-to-center position for pulls. Confirm the setting every time you switch hardware types on the same job.

What drill bit size do I need for cabinet hardware? Most cabinet hardware uses 8-32 machine screws, which require a 3/16" bit. A few European pulls use metric screws — check the hardware spec sheet. Replace bits after 50–75 holes; a dull bit tears the surface on painted doors.

Do I need to remove cabinet doors to drill them? Not necessarily. A jig works on hung doors if you can support the door from the back while drilling. For painted or veneered doors, removing them and laying them flat gives you better control and cleaner holes.

What is the best position for a knob on a shaker cabinet door? On upper shaker doors, place the knob 2-1/2" to 3" from the bottom corner of the vertical stile, on the pull side. On lower doors, use the same distance from the top corner. This places the knob at a natural hand height and maintains visual consistency across the cabinet run.

Can I fix holes drilled in the wrong place? Yes. Fill with wood filler rated for painting, sand flush after 24 hours, spot-prime, and repaint. On unfinished wood, stainable wood filler matches most species. The repair is invisible under hardware. Avoid quick-set filler on MDF — it shrinks.

One Last Thing

A detail most guides skip: when installing pulls on inset cabinet doors (where the door sits inside the frame rather than overlapping it), add 1/8" to your corner reference distance. Inset doors have narrower stiles visually, and standard placement reads too close to the edge. Moving it 1/8" outward corrects the proportion without requiring a different jig setting.
